SERVICES WE OFFER

RAW MATERIAL MANAGEMENT & CONTROL

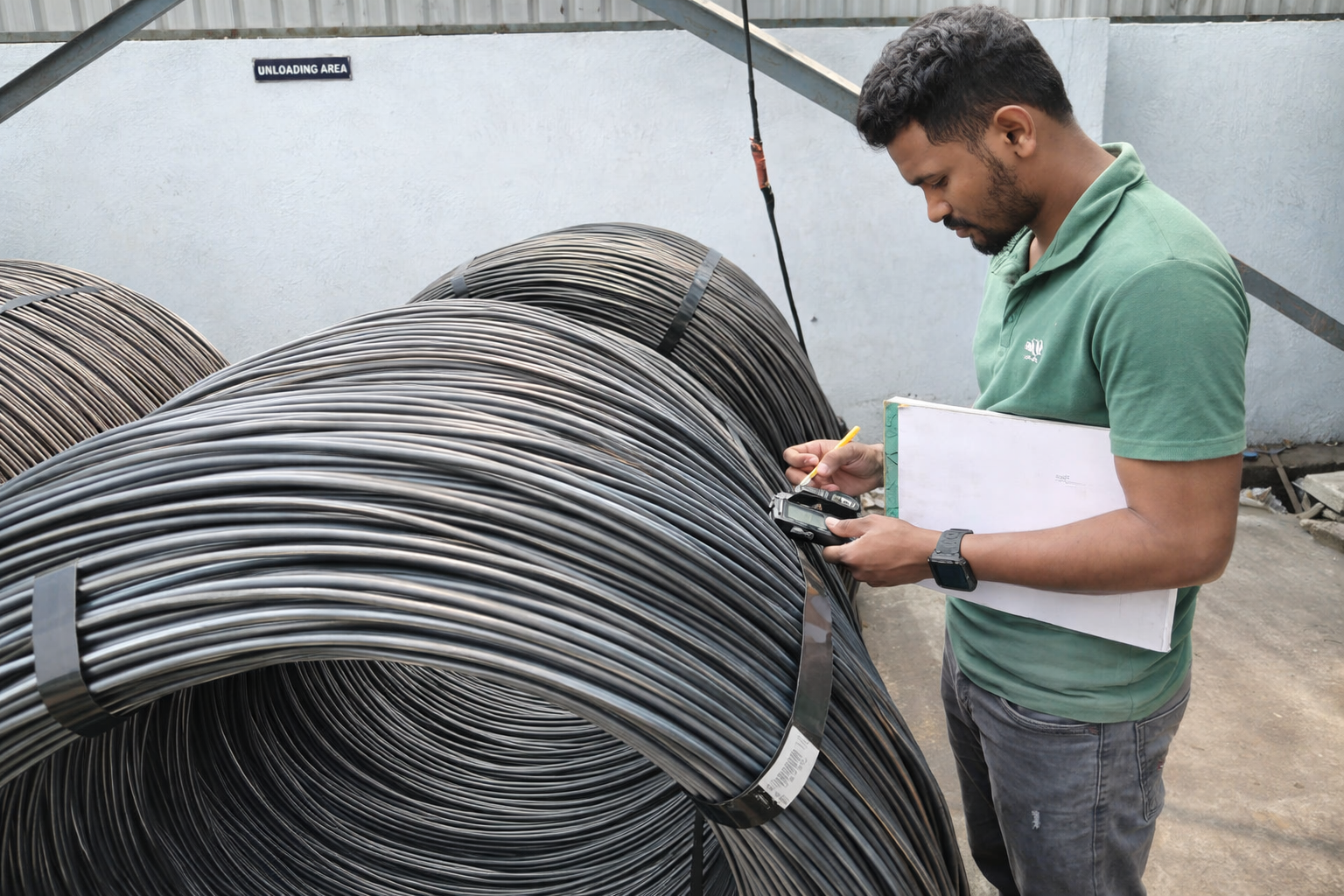

INCOMING INSPECTION PROCESS

• Chemical composition verification
• Heat number traceability
• Visual inspection
• Diameter and weight verification
• Documentation control

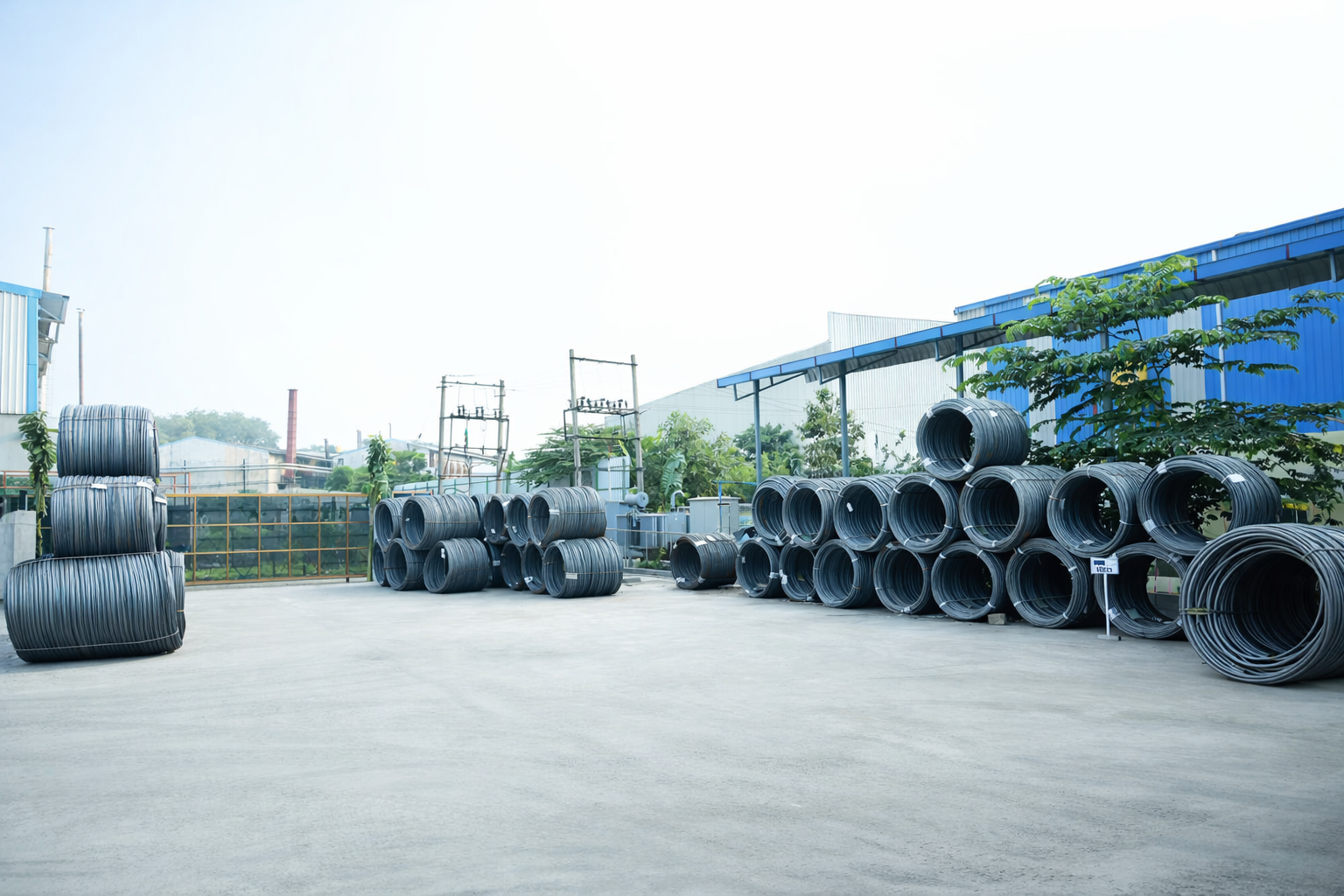

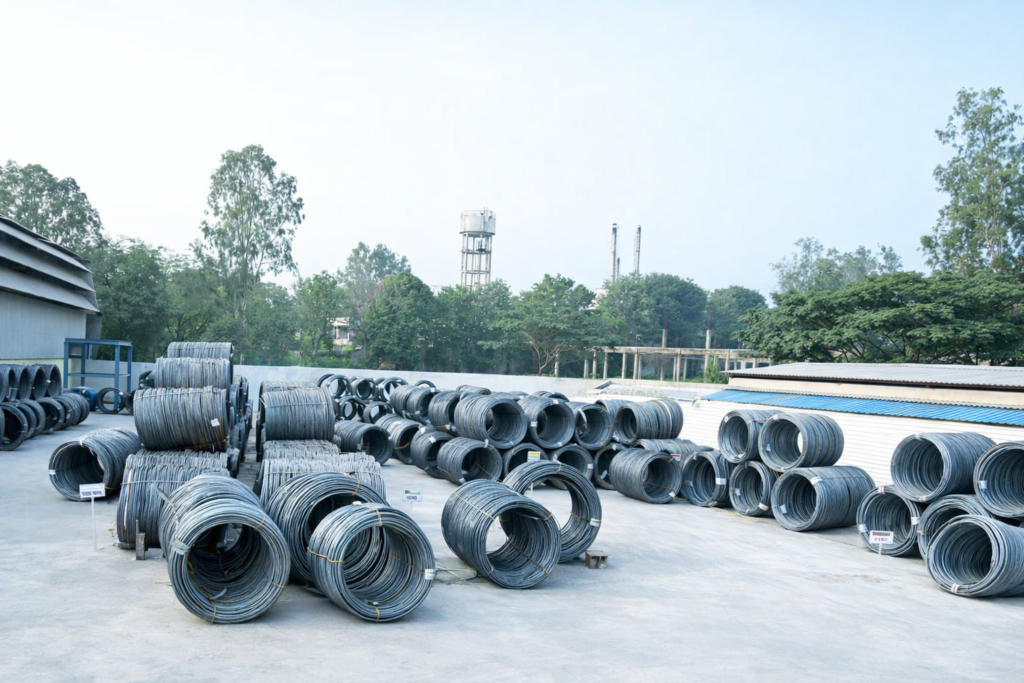

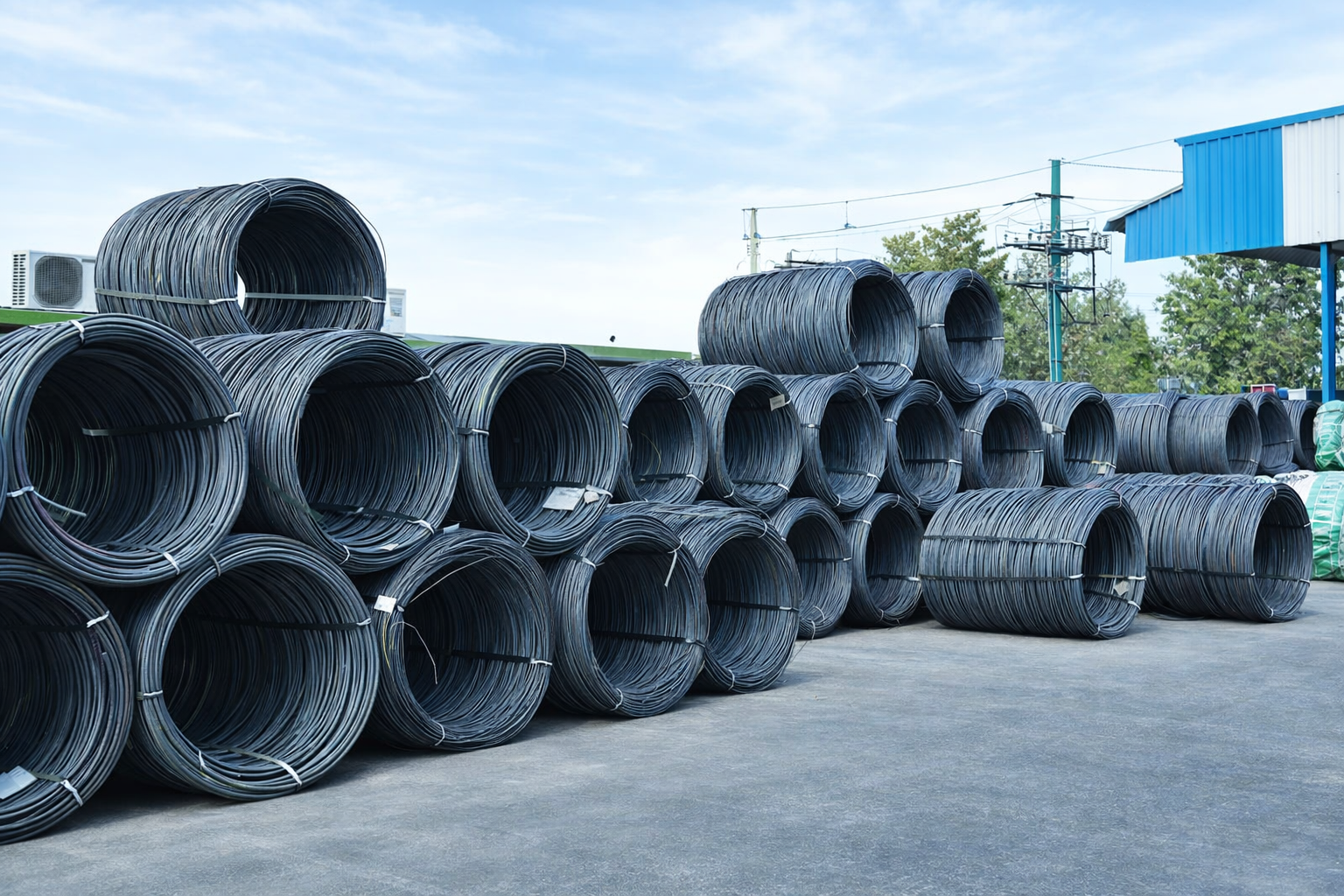

STORAGE & IDENTIFICATION​

• Segregated storage area
• Batch-wise identification
• FIFO system
• Traceability tagging

VARIETY OF GRADES​

• SAE1008, SAE1010, SAE1018, SAE1020,
SAE1022, SAE1035
• SAE1045, 4135, 4140, 8740, 52100
• 10B21, 15B25, 10B35, 19MNB4M, 16MNCR5
• 100CR6, 15B41, EN19, EN1A, EN8D, EN24,
SCM420 etc.,

SURFACE TREATMENT MODULE

Surface quality plays a critical role in wire drawing performance and final application.
Our surface treatment process ensures removal of scale and preparation of clean surfaces by applying Phosphate & Lube Coat over wire rods for smooth drawing operations.

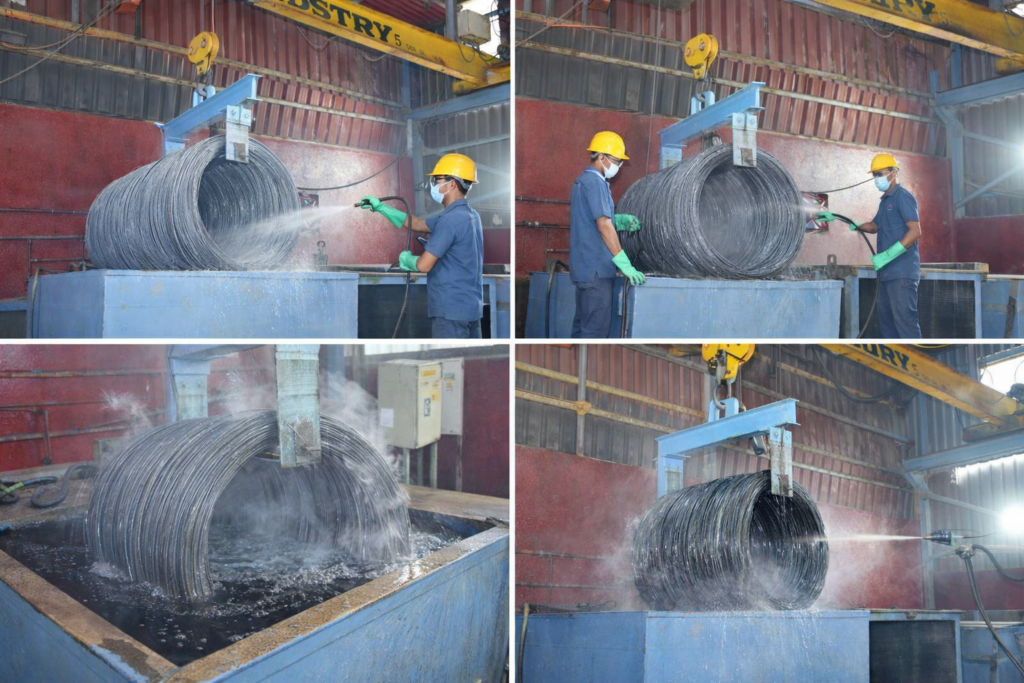

PICKLING

• Acid cleaning to remove mill scale
• Controlled acid concentration
• Rinse & neutralization

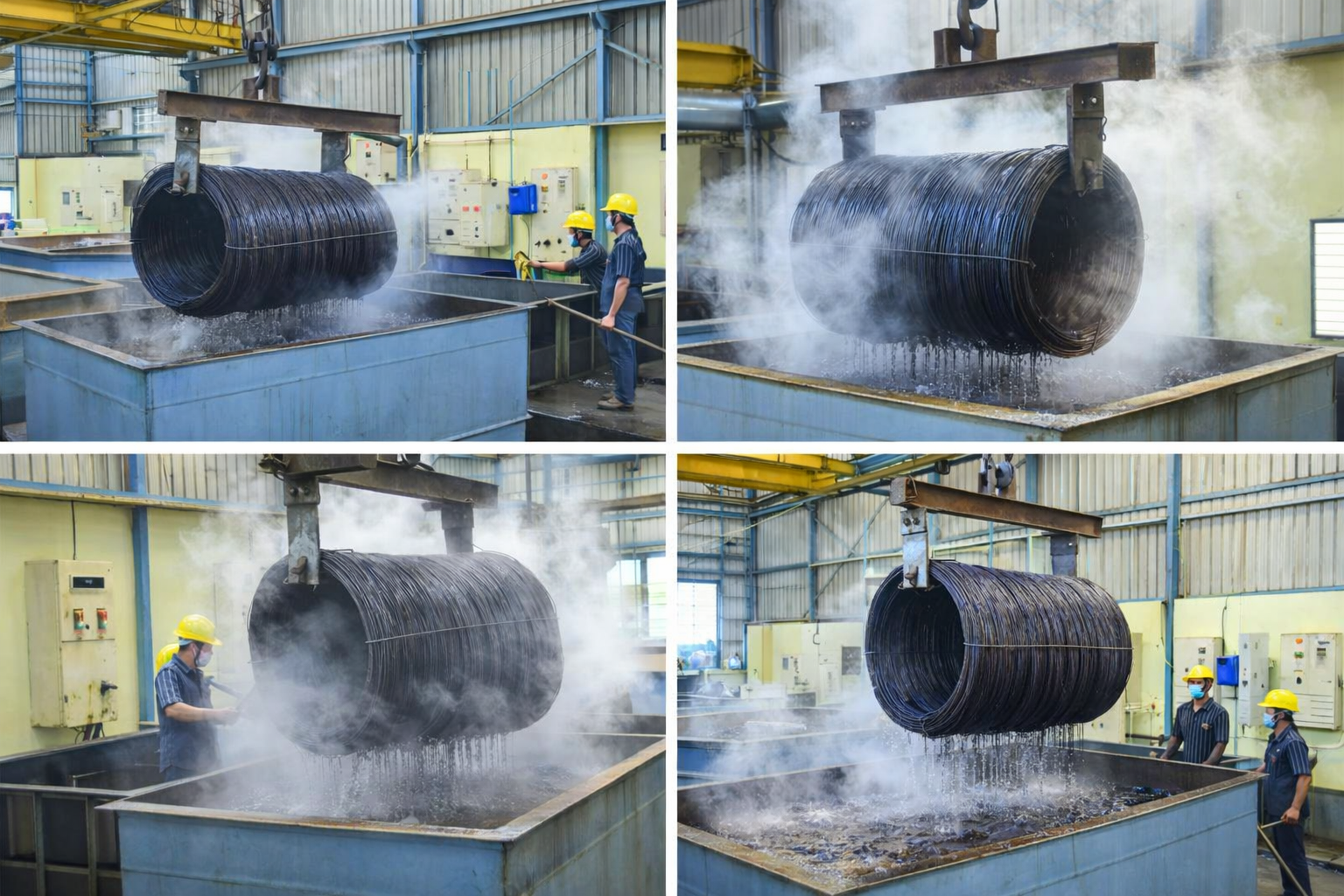

PHOSPHATING/COATING​

• Uniform phosphate coating
• Improved lubrication during drawing
• Enhanced surface finish
• Reduced die wear

INSPECTION​

• Proper drying system
• Surface condition inspection
• Better drawability
• Improved surface finish & consistent product performance

HEAT TREATMENT MODULE

Metallurgical & Mechanical Property Control
We provide controlled heat treatment processes to achieve desired mechanical properties such as tensile strength, ductility, and hardness.

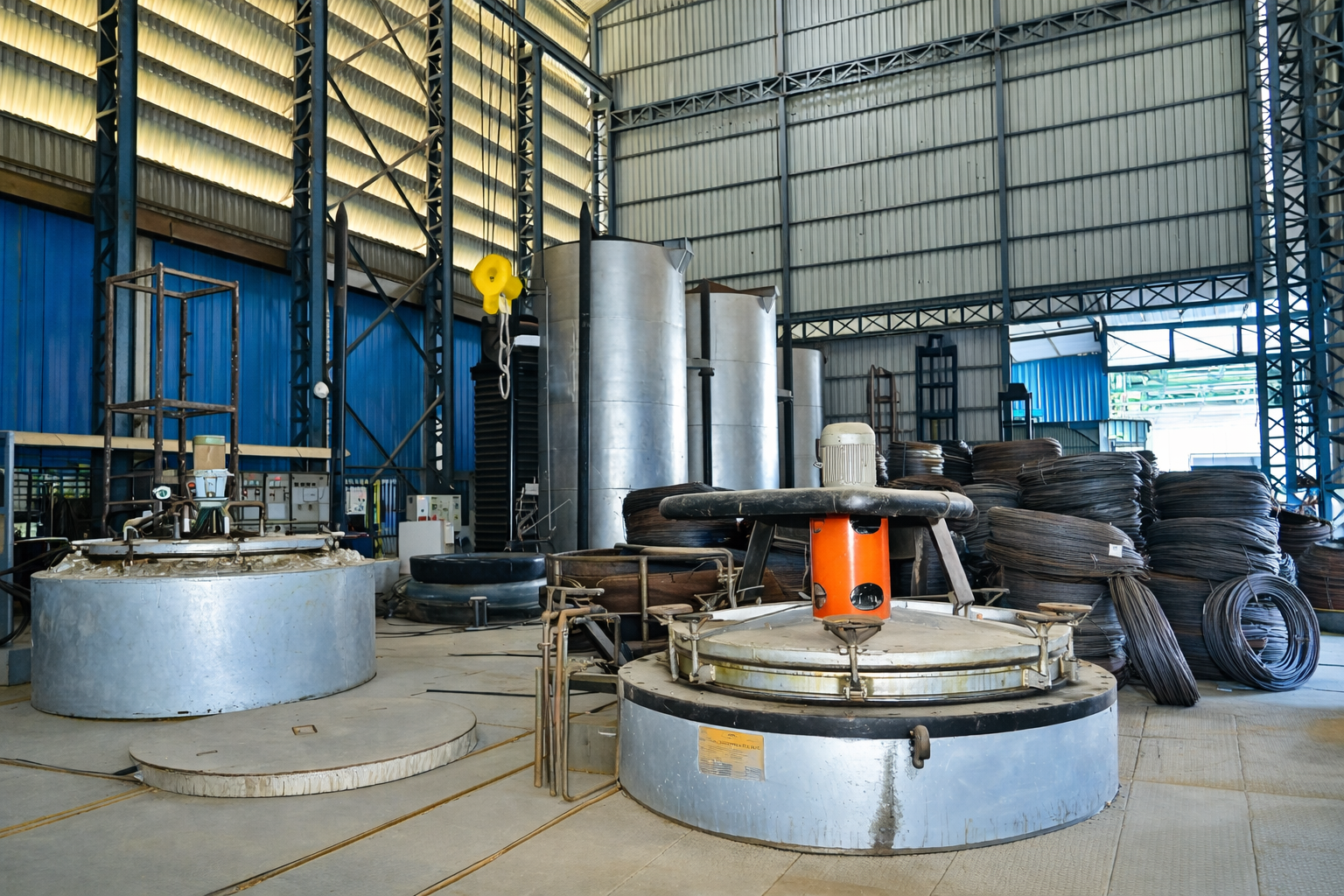

OUR CAPABILITIES – PIT FURNACE

• The 8 MT two Pit Furnace used for MS wire rods/wire coil processing ensures uniformity in tensile strength, hardness, and ductility throughout the entire batch produced.
• Its controlled heating process helps maintain consistent mechanical properties and product quality across all coils in the batch.

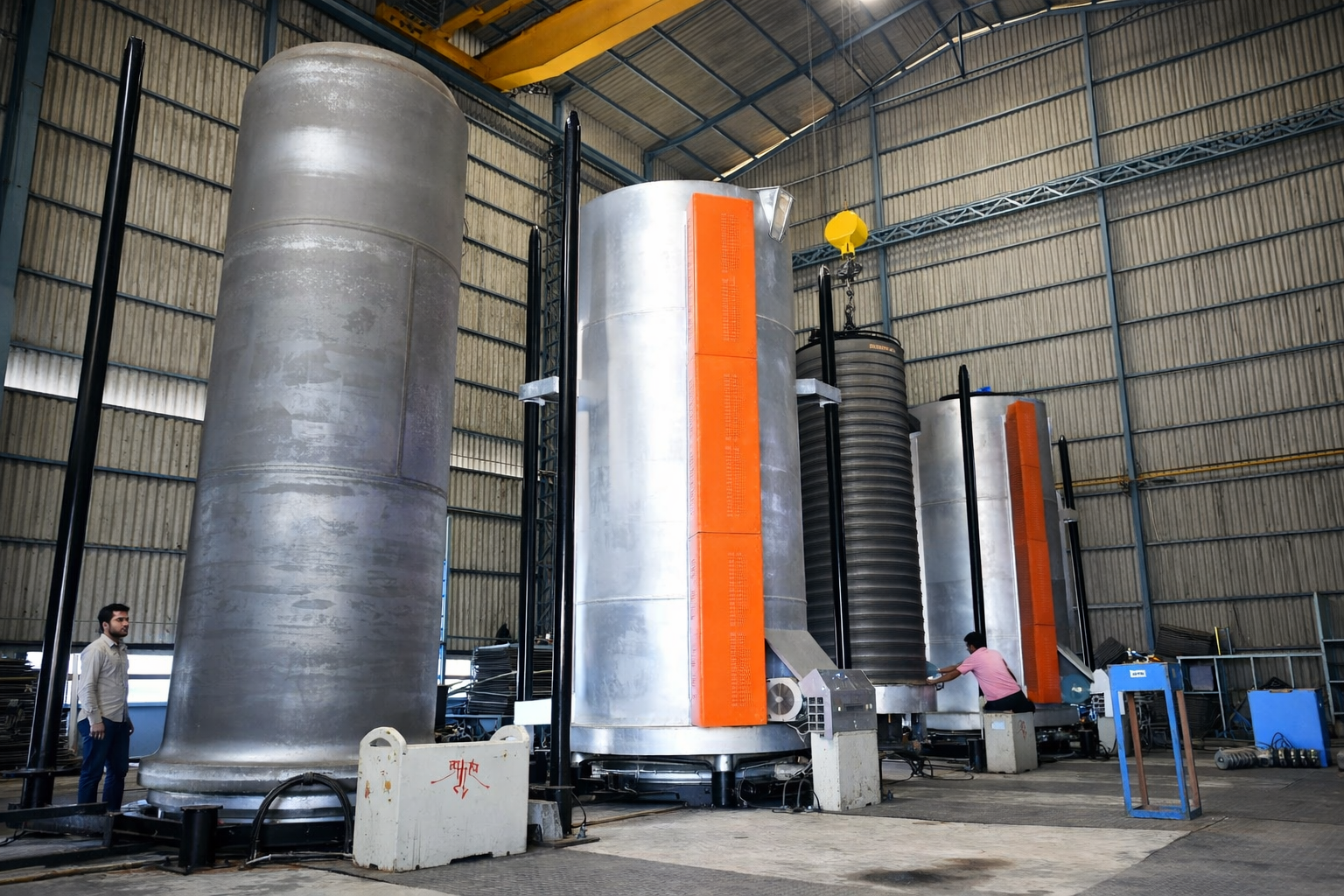

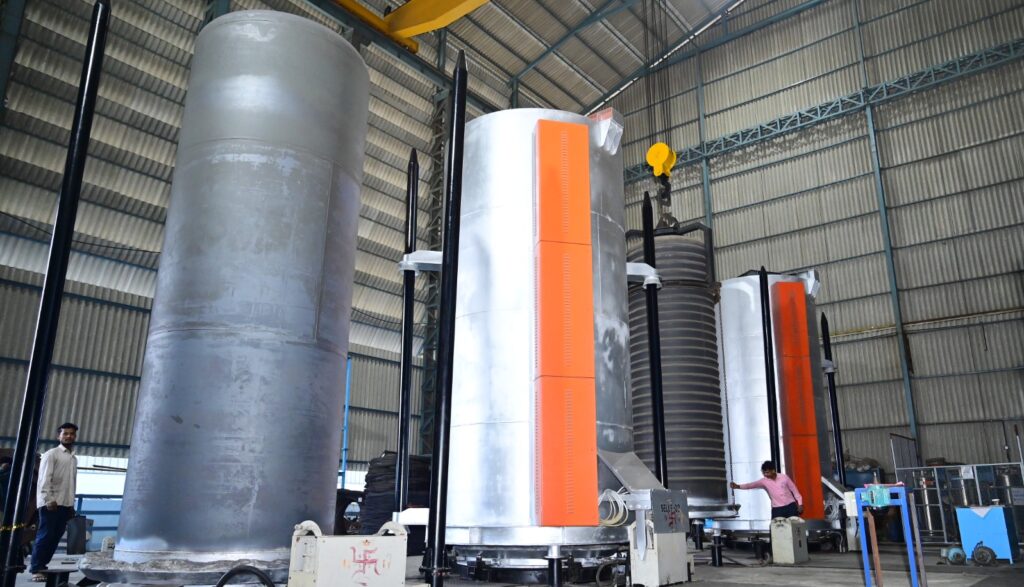

OUR CAPABILITIES – BELL FURNACE ​

• The 10 MT two Bell Furnace for Boron, Alloy, Medium & High Carbon wire rods/wire coils ensures uniform tensile strength, hardness, and ductility across the entire batch.
• Its controlled heating cycle and protective atmosphere ensure consistent quality with minimal decarburization.

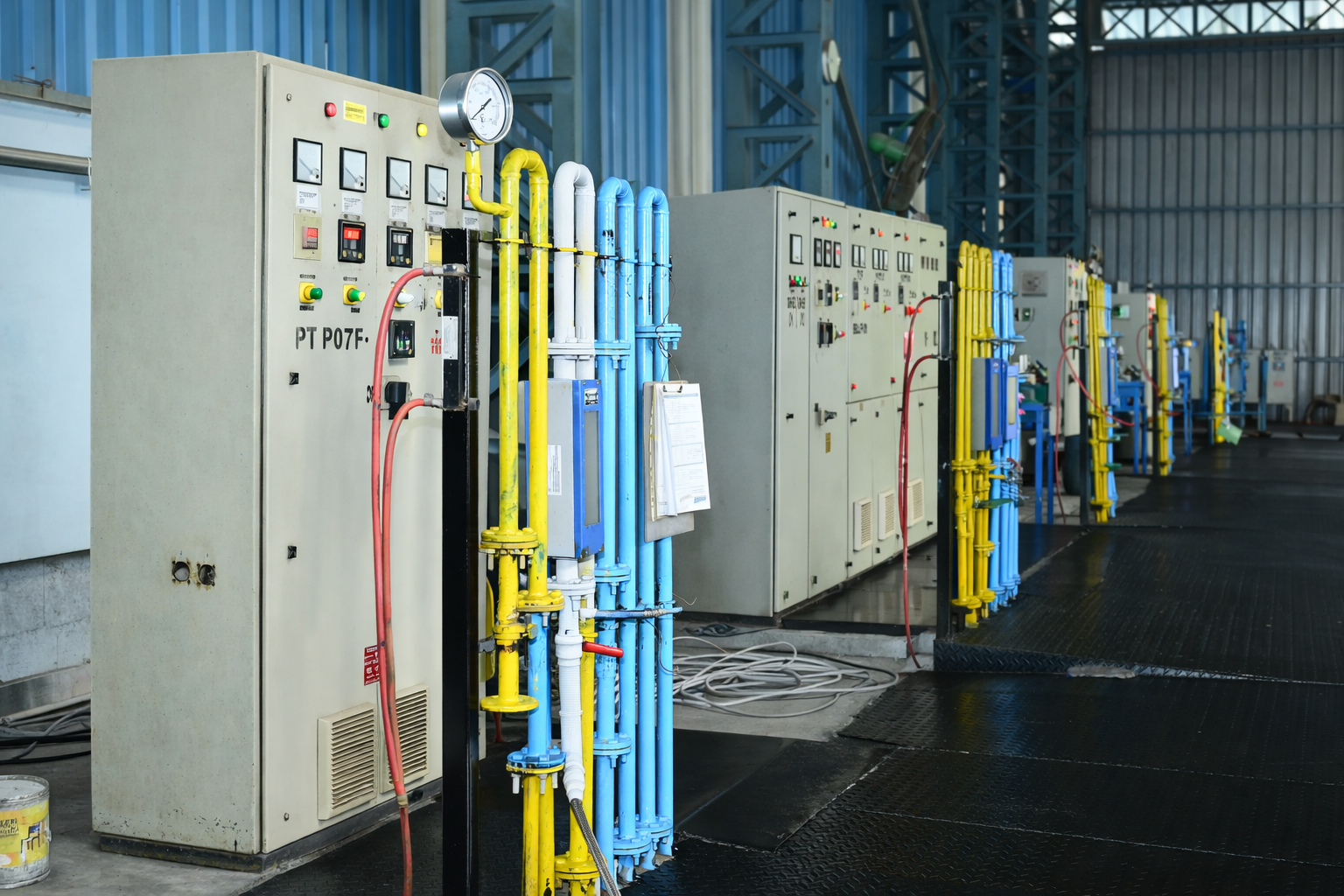

N2 AUTO LINE & HMI RECORDER​

• The N₂ automatic purging line ensures a positive atmosphere inside the furnace, thereby preventing excess decarburization during the heat treatment process.
• The HMI recorder continuously records the temperature throughout the cycle, ensuring temperature uniformity and minimizing variations during operation.

Heat treatment enhances wire flexibility, strength consistency, and application suitability.

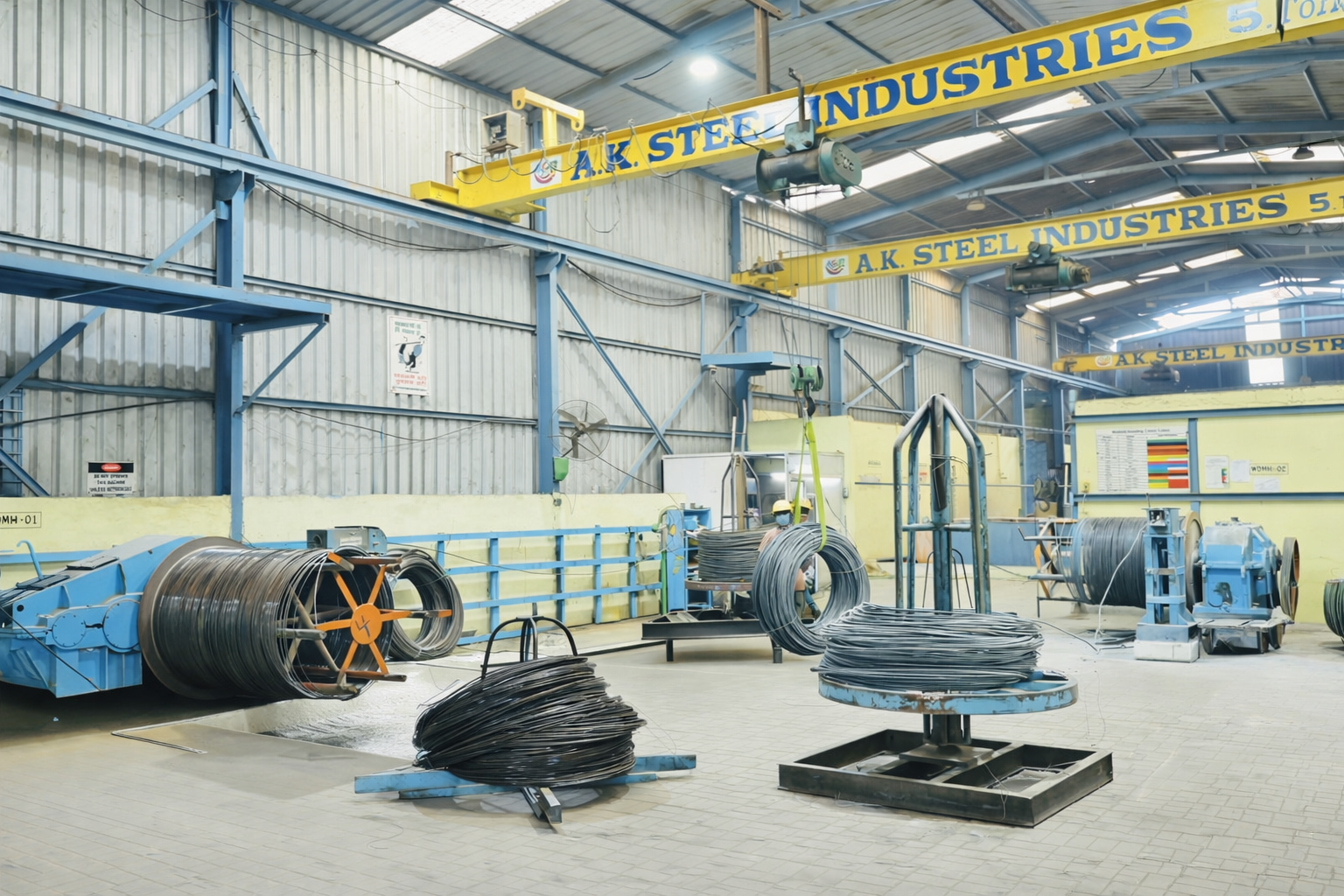

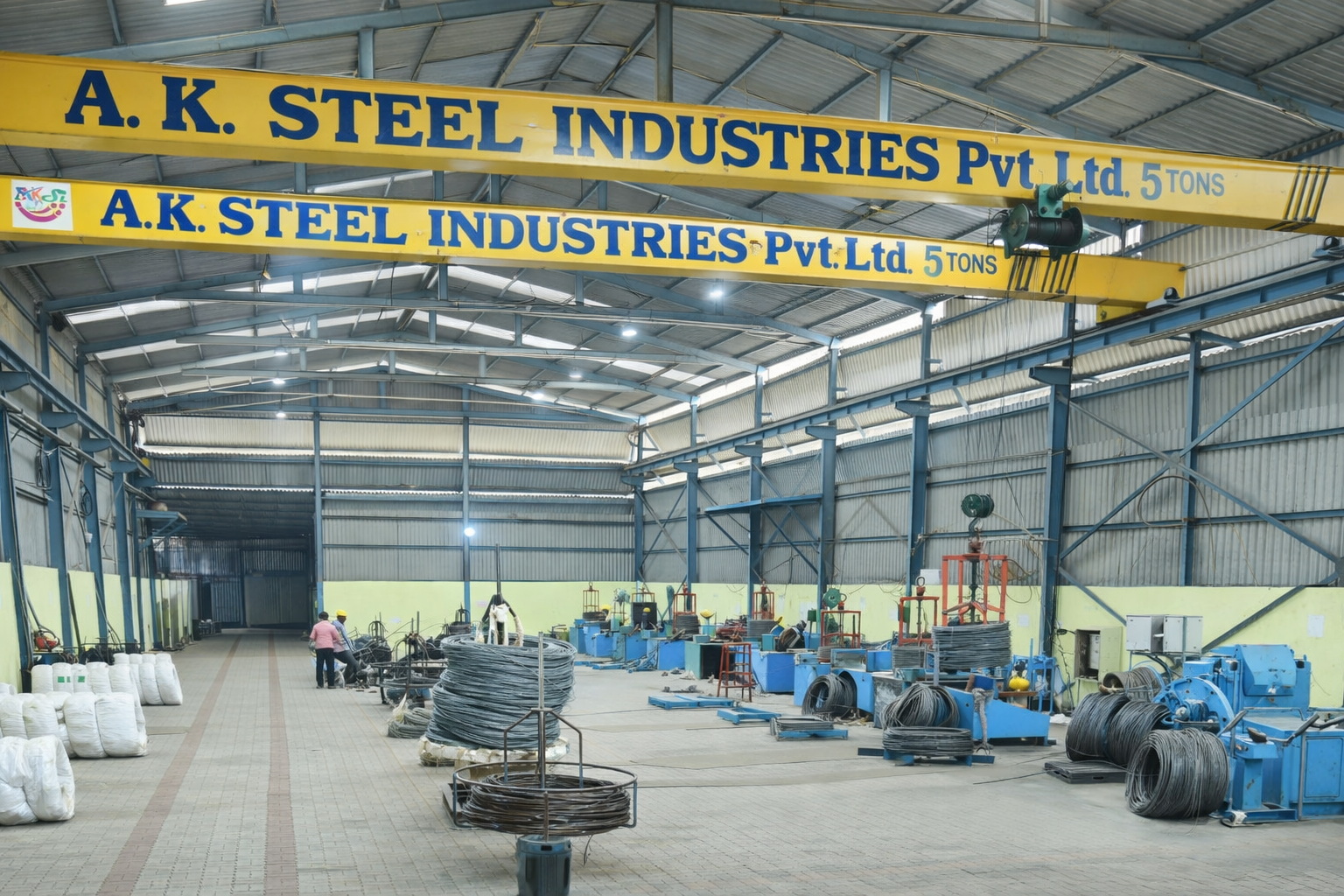

WIRE DRAWING MODULE

Precision Wire Drawing
Wire drawing is performed using multi-stage drawing in a single stage wire drawing machines to achieve accurate diameter reduction and required tensile properties based on the customer specification

PROCESS FEATURES

• Multi-pass drawing
• Controlled lubrication

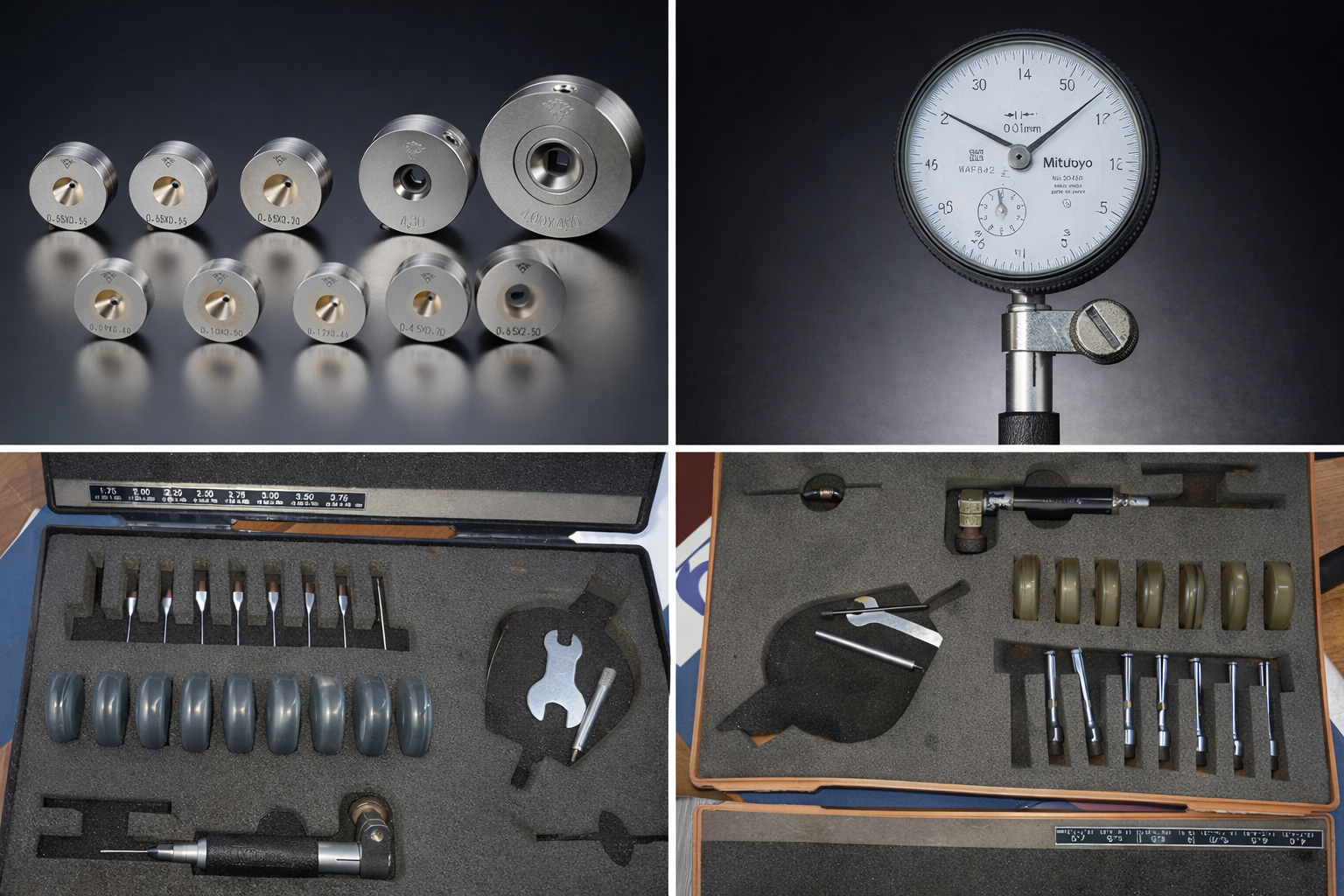

• Die maintenance system
• Diameter monitoring
• Coil weight control

SIZE RANGE​

• 1.5mm to 25mm Finished Wire Size
• 5.5mm to 28mm Raw Material Size

Achievable Tolerance
• 0.01mm for less than 2mm
• 0.02mm for 3mm to 10mm
• 0.03mm for 10mm to 15mm
• 0.04mm for 15mm to 20mm
• 0.05mm for above 20mm

QUALITY CHECKS​

• Diameter verification
• Tensile strength testing
• Surface inspection
• Elongation testing
• Coil weight check

We ensure dimensional accuracy and mechanical consistency in every coil produced.

OUR PRODUCTS

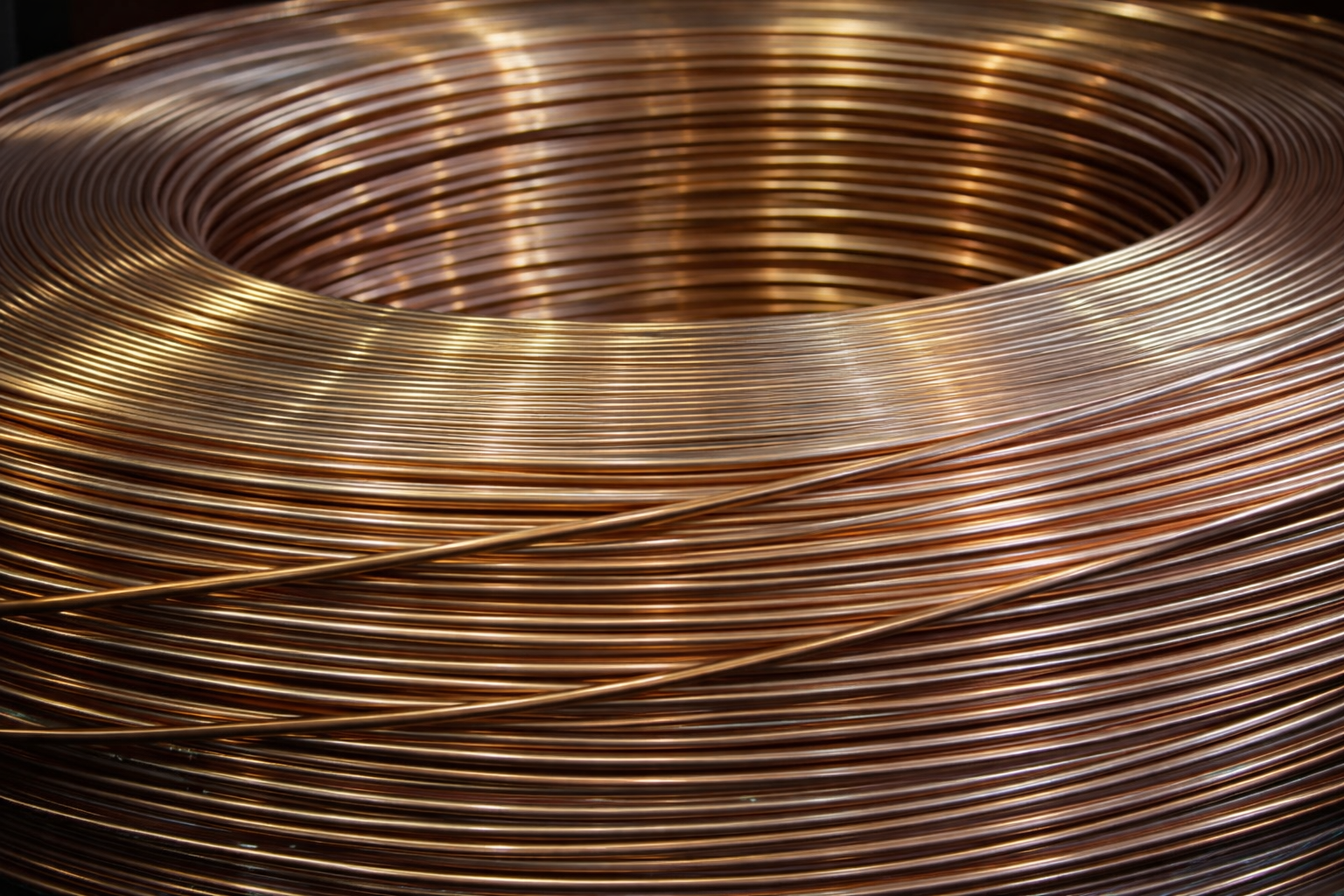

COPPER DRAWN WIRE

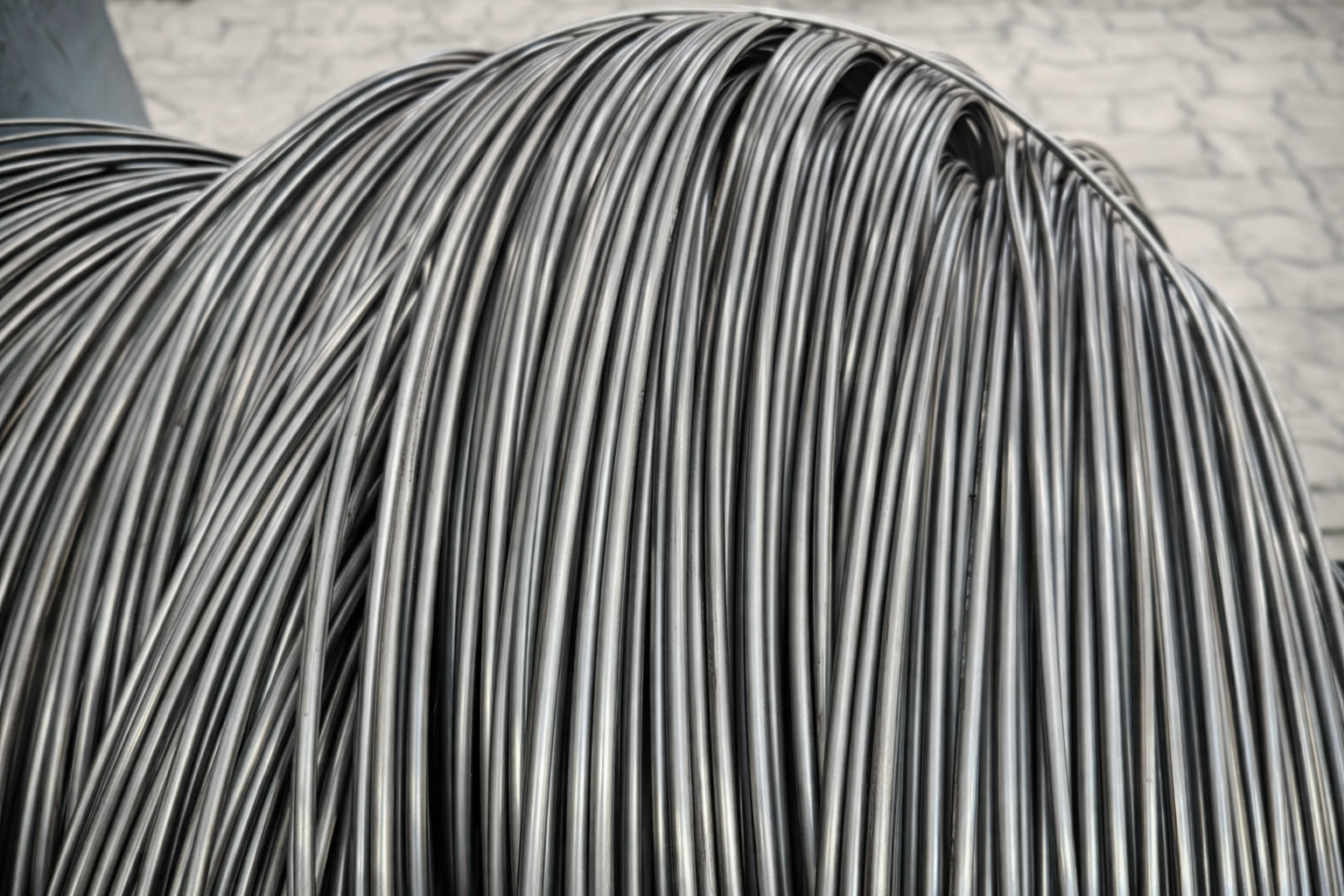

HARD BRIGHT WIRE​

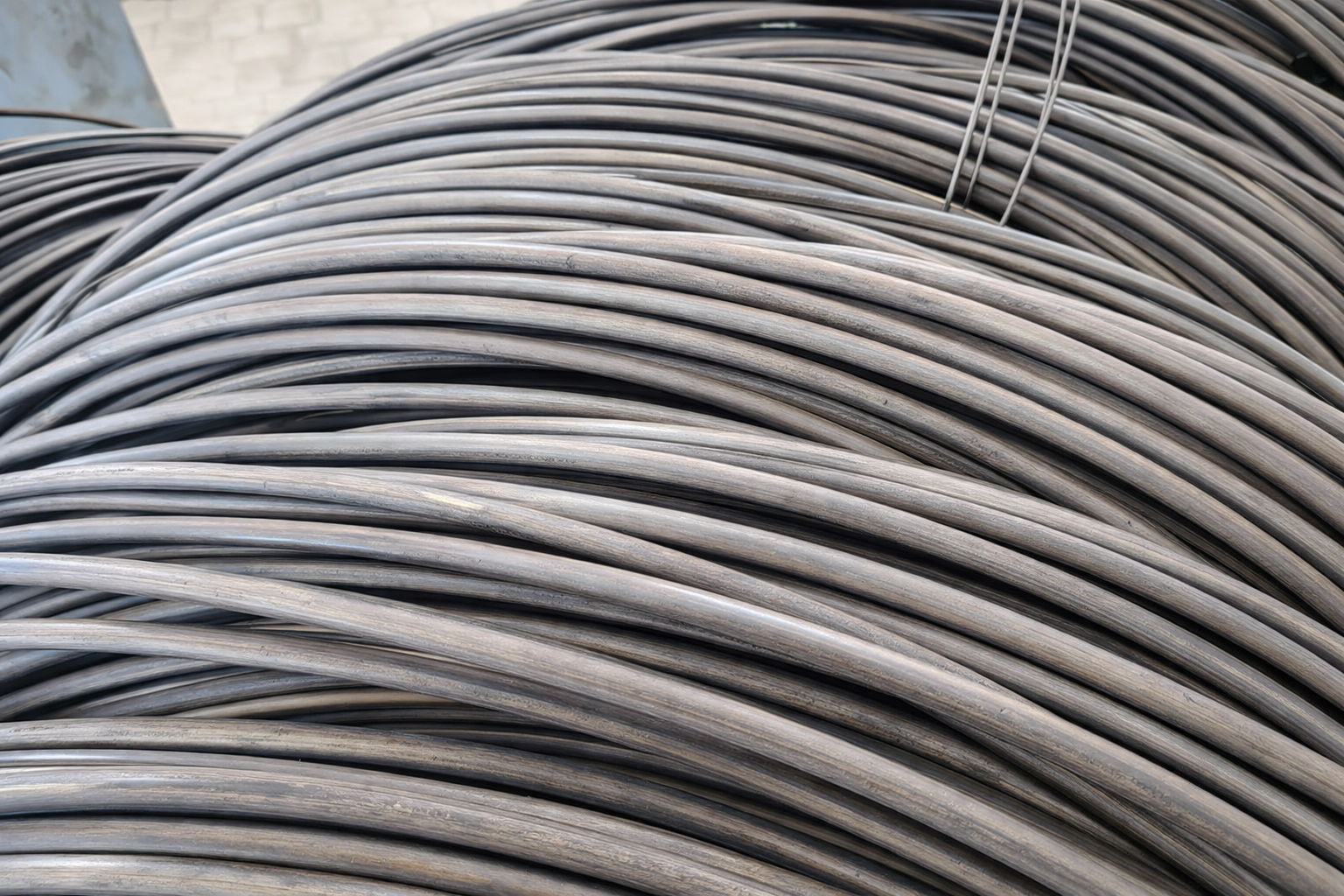

SPHEROIDIZED ANNEALED COILS​

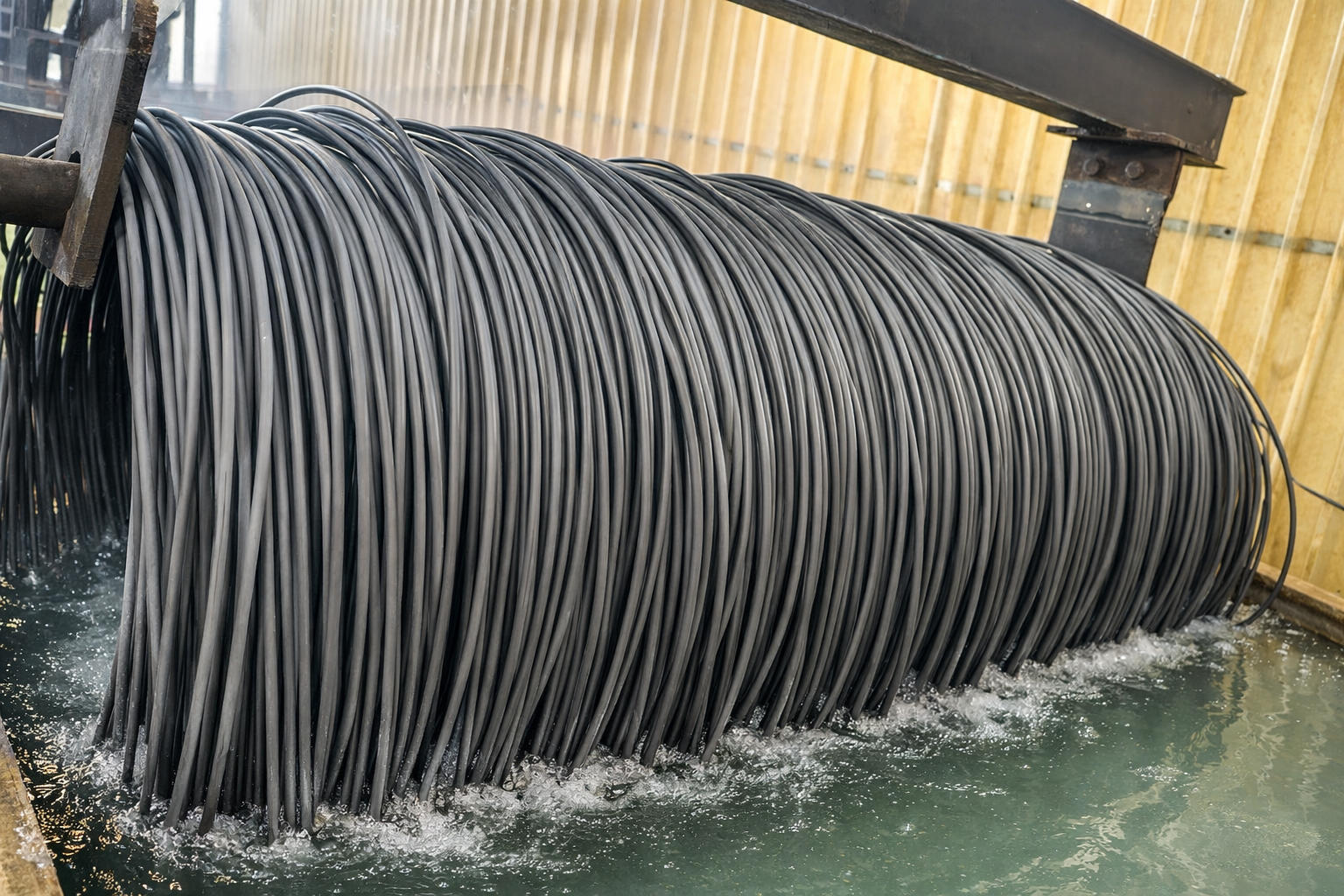

PICKLED & PHOSPHATED WIRES​

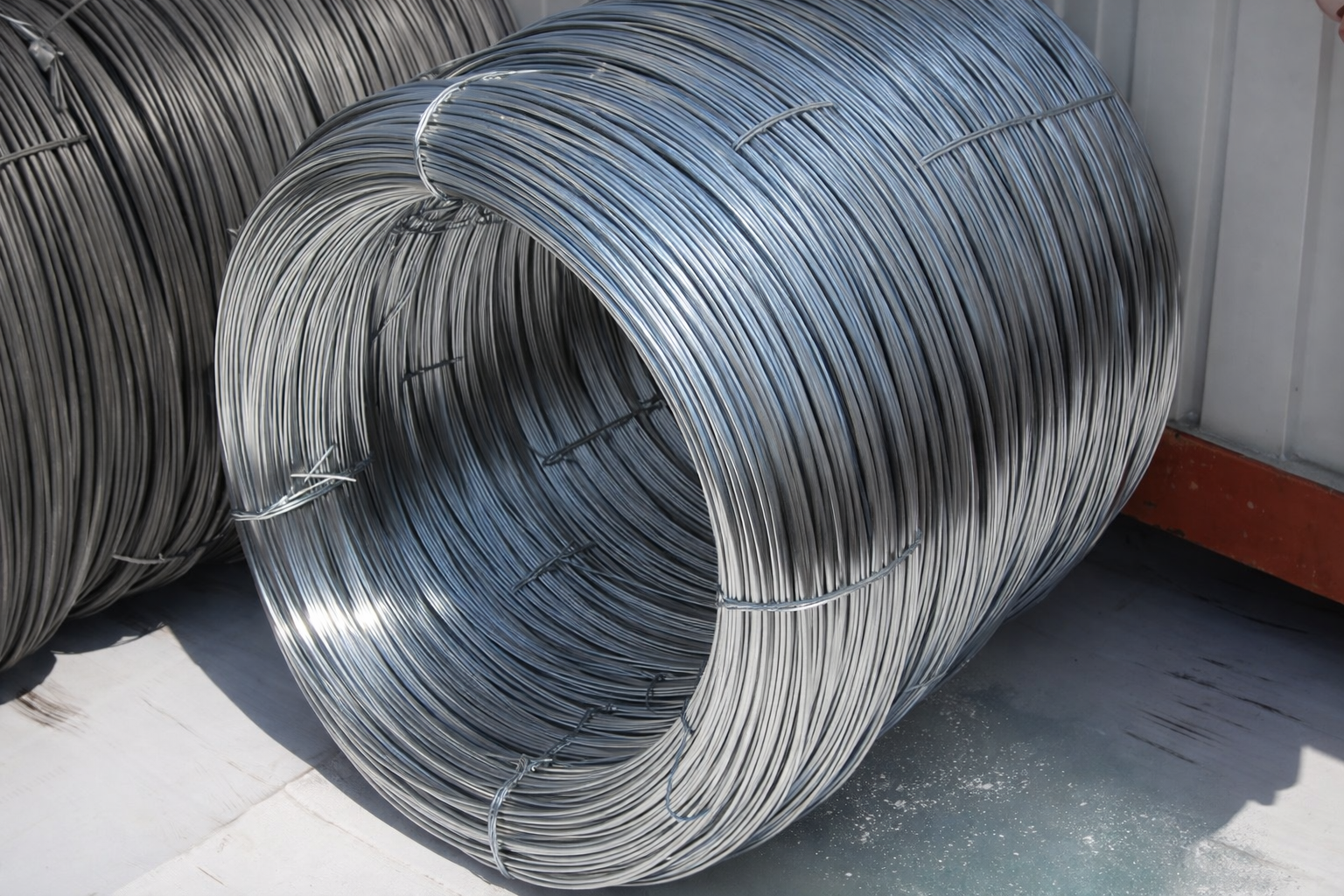

PICKLED, PHOSPHATED & DRAWN WIRES​

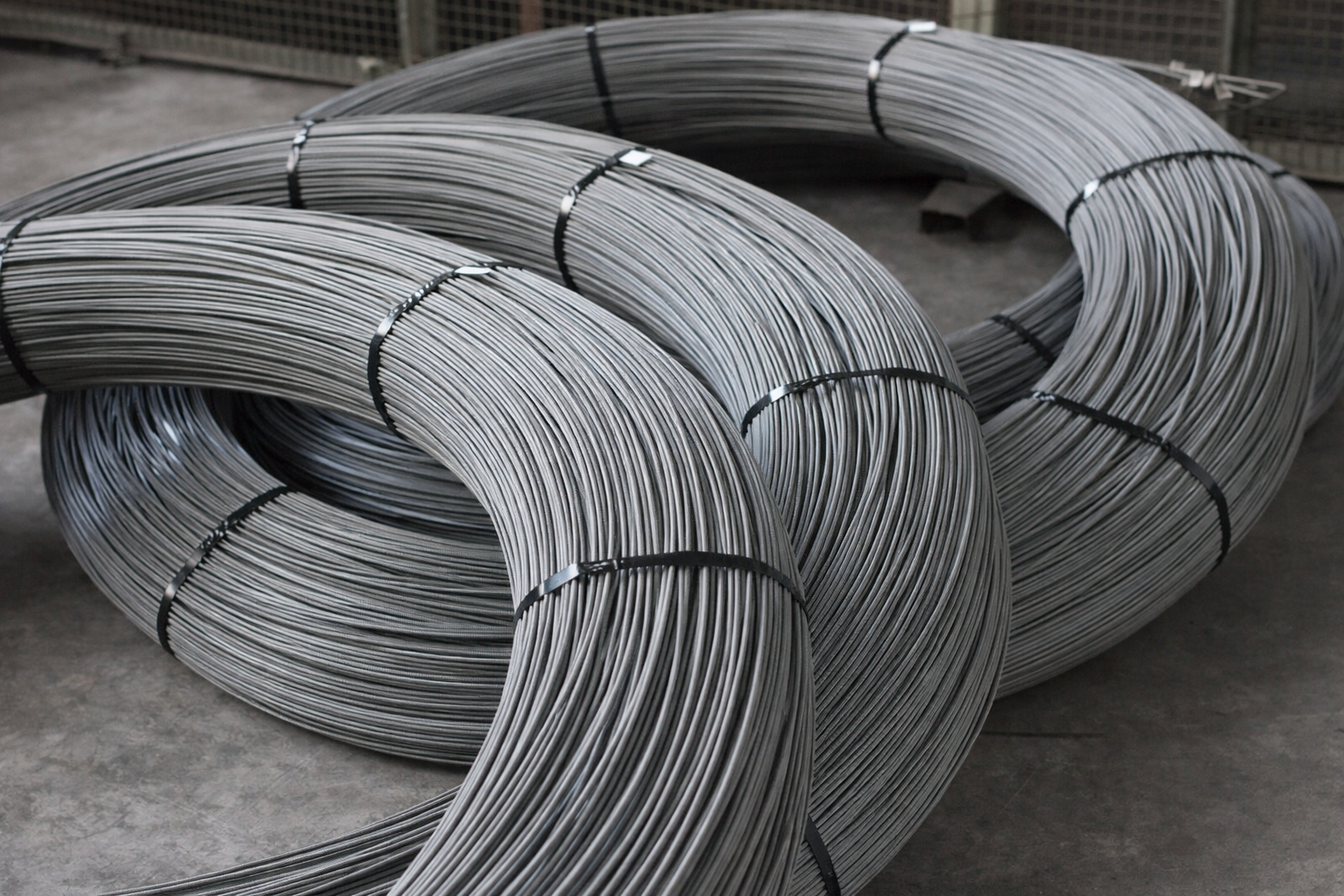

SPHEROIDIZED ANNEALED, PICKLED, PHOSPHATED & DRAWN WIRES​
